How to Clean Flexible Resin Lattice Prints Without Damage

To clean flexible resin lattice prints, allow excess resin to drain, wash the part with a material-compatible cleaning liquid, flush trapped resin from the lattice cells, rinse with fresh cleaning liquid, and dry the entire structure before UV post-curing. Use gentle handling throughout the process to protect thin struts and prevent deformation.

The main challenge is not cleaning the outside surface. It is removing uncured resin and cleaning liquid from hundreds or thousands of small openings, intersections and partially enclosed areas.

For applications such as 3D printed shoe soles, cushioning pads, flexible engineering prototypes and protective components, an effective cleaning process must preserve both the geometry and the intended elastic behavior of the structure.

Why Are Flexible Lattice Prints Difficult to Clean?

A conventional solid resin print has relatively accessible surfaces. A lattice structure contains interconnected cells, narrow passages, thin struts and numerous internal intersections.

Liquid resin can remain attached to these surfaces after printing, even when the outside of the model looks clean.

Common problems include:

• Trapped uncured resin: Small cells and intersections retain liquid that an ordinary wash may not remove.

• Blocked openings: Resin residue can accumulate inside narrow gaps and become difficult to remove after curing.

• Solvent retention: Cleaning liquid can remain inside interconnected cells after washing.

• Solvent-related swelling: Some flexible formulations absorb cleaning liquids, potentially changing dimensions or material behavior.

• Mechanical deformation: Aggressive agitation, excessive air pressure or support removal can damage delicate lattice struts.

These risks become more significant as cell openings become smaller and the lattice becomes denser.

Step-by-Step: How to Wash Flexible Resin Lattice Prints

Step 1: Drain Excess Resin Before Washing

After printing, allow the part to drain over the resin tank or an appropriate collection area.

Change the part's orientation carefully to encourage liquid resin to leave different sections of the lattice. Avoid pulling or squeezing thin structures while they are still in their uncured or partially cured state.

Check the model for areas where liquid is likely to collect, such as horizontal cells, deep recesses and densely packed intersections.

Support removal should follow the material-specific process. Some prints can be cleaned more effectively after selected supports are removed, while delicate structures may need support during the first wash.

Step 2: Choose the Correct Cleaning Liquid

Isopropyl alcohol (IPA) is commonly used to wash photopolymer resin prints, but it is not automatically suitable for every flexible resin.

Some elastomeric resins are sensitive to solvent exposure. Excessive washing or soaking may cause temporary swelling, dimensional changes or deterioration of mechanical properties.

Before washing, check the resin manufacturer's technical documentation for:

• Approved washing liquids and required concentrations.

• Maximum permitted solvent exposure.

• Recommended washing method and agitation level.

• Drying requirements.

• UV post-curing conditions.

Only use water when the specific resin and its processing instructions permit water washing. Flexible resin should not be assumed to be water-washable.

Step 3: Remove the Bulk of the Uncured Resin

Perform the initial wash using the manufacturer's recommended liquid and time.

Gentle movement of the part or controlled liquid circulation can help cleaning liquid enter the lattice structure. Rotate the part to expose different cell orientations.

Avoid strong mechanical agitation that bends the lattice repeatedly or causes unsupported sections to strike the wash container.

For particularly delicate structures, use a basket or suitable fixture to keep the part stable.

Ultrasonic cleaning may be appropriate for certain resin systems, but it should only be used when the resin and equipment manufacturers approve the process. Flammable solvents must never be placed directly into ultrasonic equipment that is not designed and approved for their use.

Step 4: Flush Resin From Individual Lattice Cells

This is the most important difference between cleaning an open lattice and cleaning a conventional solid resin print.

An ordinary wash may remove most surface resin while leaving residue inside intersecting cells and deep recesses.

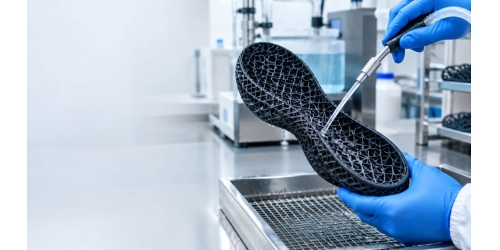

Where geometry permits, use a small syringe or a controlled liquid-dispensing tool filled with the approved cleaning liquid to direct a gentle flow through difficult openings.

Work from several orientations so the cleaning liquid can enter and leave different paths through the structure.

Pay special attention to:

• Dense lattice regions where several struts meet.

• Small openings near thicker outer walls.

• Blind recesses and partially enclosed cells.

• Changes between coarse and fine lattice densities.

• Areas around support contact points.

For fragile cells, do not force a nozzle into an opening or direct a concentrated jet against individual struts.

If some internal passages cannot be reached or drained, the problem may require a design change rather than a more aggressive cleaning process.

Step 5: Rinse With Fresh Cleaning Liquid

When the material instructions allow multiple washing stages, use a cleaner final rinse to remove remaining diluted resin from the lattice.

The first wash normally becomes contaminated more quickly because it removes most of the uncured resin. A clean final rinse reduces the possibility of redepositing resin onto the part.

Rotate the print gently during the final rinse, particularly if the lattice has different cell orientations.

Keep the combined exposure within the resin manufacturer's permitted washing conditions.

Step 6: Drain and Dry the Internal Structure

Removing visible resin does not mean the part is ready for UV curing. Cleaning liquid can remain hidden inside narrow openings.

Place the print in a suitable draining orientation and allow the liquid to leave the structure.

Where permitted, carefully applied, low-pressure, clean air can help remove retained cleaning liquid from accessible openings.

Use appropriate splash containment and ventilation. Avoid directing air in a way that produces uncontrolled solvent spray or damages thin lattice elements.

Allow the entire part to dry under the conditions specified for the material. Do not judge dryness from the external surface alone.

Step 7: Inspect Before UV Post-Curing

Inspect the lattice under suitable lighting before transferring it to the curing equipment.

Look for glossy liquid pockets, blocked openings, unusual surface films, swollen regions and damaged struts.

If uncured resin is still visible, do not attempt to solve the problem simply by increasing the UV curing time. First determine whether the cleaning process can be corrected within the material's allowed washing limits.

Once the part is adequately cleaned and dried, post-cure it according to the resin manufacturer's specified wavelength, exposure, temperature and part-orientation requirements.

Do not assume that the curing profile used for rigid model resin will produce the desired mechanical response in a flexible lattice.

Flexible Lattice Cleaning: Common Problems and Solutions

How to Verify That a Lattice Is Properly Cleaned

For professional sample development and repeated production trials, visual inspection should be performed consistently rather than relying only on whether the outside surface feels clean.

A practical evaluation method is to use a representative test sample with the smallest cell openings and most difficult-to-clean areas found in the actual part.

Recommended Cleaning Validation Method

1. Select a representative sample. Include the real lattice density, wall thickness and difficult internal geometry.

2. Document the process. Record the resin formulation, washing liquid, wash stages, total exposure, drying method and post-curing conditions.

3. Inspect fixed locations. Photograph the same internal openings after the first wash, final rinse and drying.

4. Check structural condition. Look for deformation, broken struts, swelling and remaining liquid.

5. Compare repeat samples. Apply the same cleaning procedure to additional matching prints and check whether the results remain consistent.

If comparing two washing methods, change one process variable at a time, such as the final rinse method or drainage orientation. This helps distinguish cleaning-related changes from differences caused by printing or curing.

For inaccessible internal passages, a dedicated inspection coupon or sacrificial sample may be necessary. A clean external surface alone cannot verify that every hidden cavity is free of residue.

For functional lattice components, mechanical evaluation should take place only after the complete, validated washing, drying and curing process.

How Lattice Design Affects Cleaning

Cleaning difficulty begins with the geometry of the printed part.

Two lattices made from the same resin may behave differently during washing because their cell sizes, density gradients and drainage paths are different.

When designing a flexible component for repeated production, engineers should consider cleaning access alongside stiffness, cushioning response and material consumption.

A lattice that prints successfully but cannot be cleaned consistently may require changes to cell openings, drainage paths or build orientation.

Cleaning Safety and Solvent Handling

Uncured photopolymer resin and washing solvents require controlled handling.

Use appropriate chemical-resistant gloves, eye protection and suitable ventilation, following the safety data sheets for both resin and solvent.

Keep IPA and other flammable solvents away from sparks, flames and hot surfaces. Use properly labeled containers and compatible cleaning equipment.

Do not use uncontrolled high-pressure air to scatter solvent and resin droplets around the workspace.

Used washing liquid, contaminated wipes and resin-containing wash water must be collected and managed according to applicable regulations and workplace procedures. Do not pour contaminated liquids into ordinary drains.

FAQ: Cleaning Flexible Resin Lattice Prints

Can I wash flexible resin lattice prints with IPA?

Yes, if IPA is approved for the specific resin. Check the material's washing instructions for the correct concentration, duration and handling requirements. Some flexible formulations are sensitive to prolonged solvent exposure.

How long should flexible lattice prints stay in the wash?

There is no universal washing time. The correct duration depends on the resin formulation, cleaning method, solvent condition and geometry. Use the manufacturer's instructions as the starting point and validate the process with representative parts.

Can compressed air damage flexible lattice prints?

Yes. Strong air pressure can deform thin struts or damage delicate features. Where air-assisted drainage is permitted, use a controlled low-pressure process with appropriate splash containment and safety precautions.

Can I clean flexible lattice prints with water?

Only when the resin manufacturer specifies a compatible water-washing process. The fact that a material is flexible does not mean it can be cleaned with water.

Why is my flexible resin lattice still sticky after washing?

Possible causes include residual uncured resin, contaminated washing liquid, insufficient drying or material-specific surface chemistry. Some flexible formulations may retain a degree of tackiness even after their prescribed wash. Check the resin instructions before changing the process.

Should I cure a lattice before removing trapped resin?

Generally, uncured surface resin should be removed before final UV post-curing. Otherwise, residue can cure inside cell openings and change the geometry. The complete support-removal and curing sequence must still follow the material-specific workflow.
