The G350 secondary UV curing box is a professional device designed for post-processing of 3D printed models. It is particularly suitable for curing photosensitive resin materials and can meet most market needs. Whether it is an individual enthusiast or a professional workshop, this device can easily achieve efficient, uniform and safe curing.

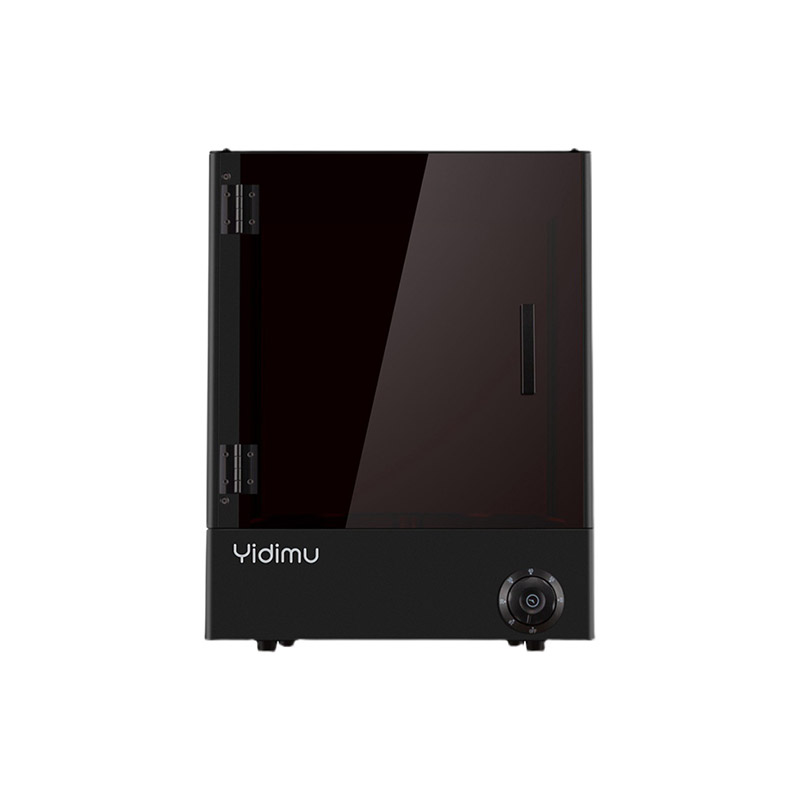

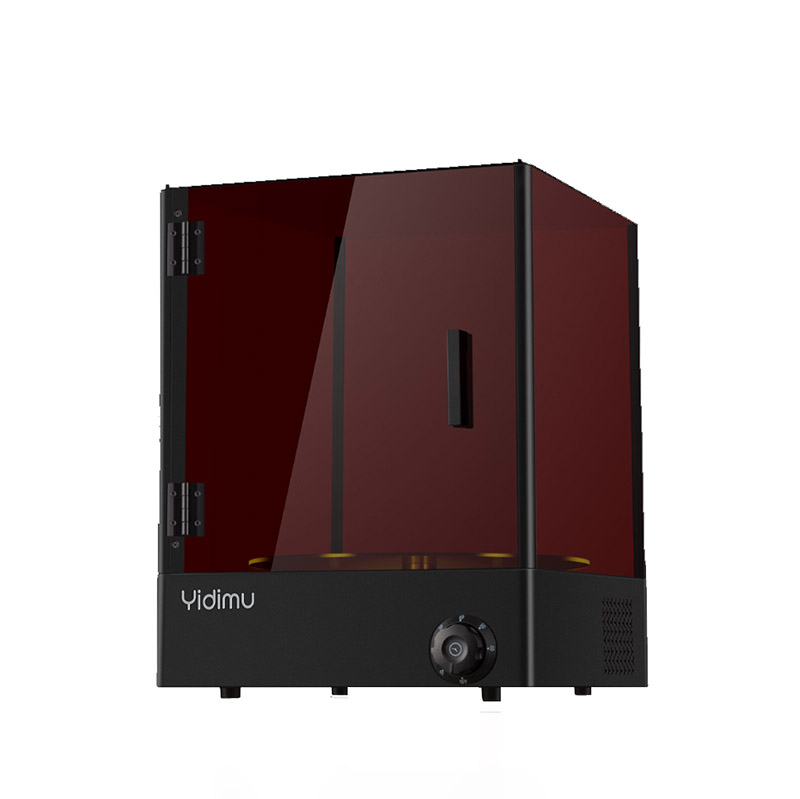

G350 Secondary UV Curing Box

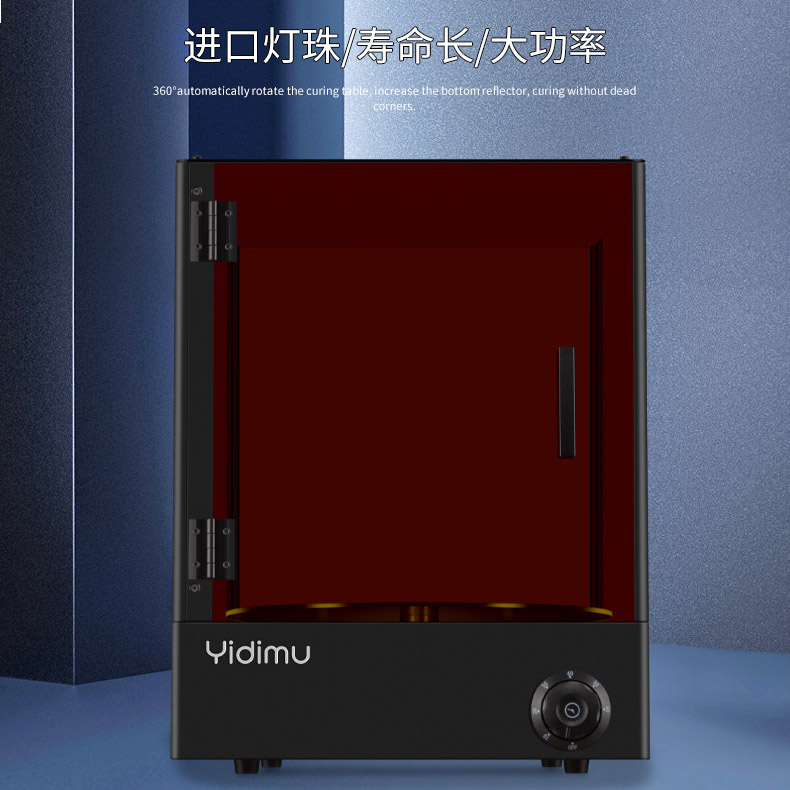

G350 uses imported lamp beads, which have many advantages such as long life, high power, strong light energy, high working efficiency, fast curing, and safe use. Its all-round 360° automatic rotating table three-dimensional curing technology, combined with the 4-sided mirror design of the box and the bottom reflector, ensures all-round curing without dead angles, greatly improving the curing effect.

G350

Product Features

Efficient curing: imported lamp beads are used, with strong light energy and fast curing speed, ensuring fast and uniform curing of 3D printed models.

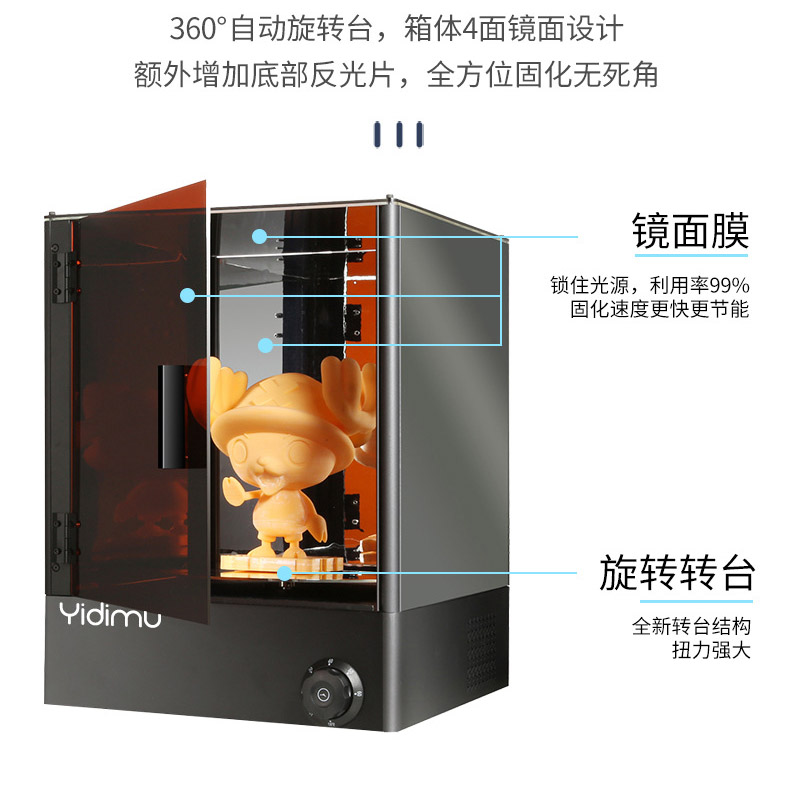

All-round curing: 360° automatic rotating table combined with 4-sided mirror design, no dead angle curing, improving curing effect.

Energy saving and environmental protection: 4-sided mirror design + bottom reflector, mirror film locks the light source, the utilization rate is as high as 99%, and curing is faster and more energy-saving.

Convenient operation: supports energy saving and timing functions to meet different user needs.

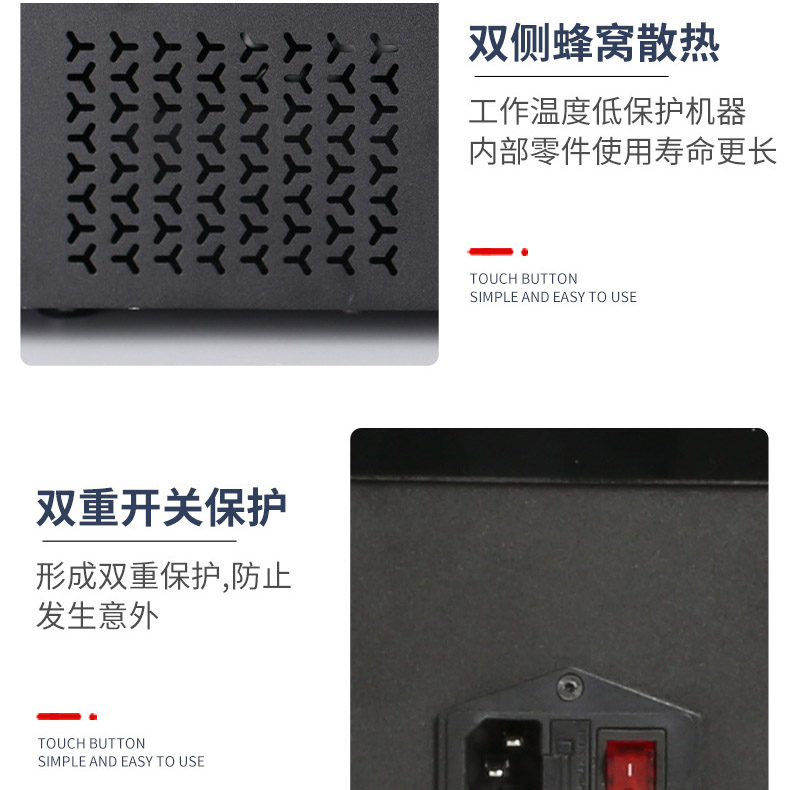

Safe and reliable: The new turntable structure has strong torque, and the double-sided honeycomb heat dissipation ensures low working temperature and extends the service life of the internal parts of the machine. Double switch protection to prevent accidents.

Secondary UV Curing Box


Product parameters

Machine model: YDM-UV-350

Using temperature: 10-30 (°C)

Storage temperature: 0-30 (°C)

Power input: AC220V 50/60HZ

Control time: 0-60 minutes

Machine dimensions: 350x350x443 (mm)

Packaging weight: 7.9KG

Curing dimensions: 340x340x310 (mm)

Turntable diameter: 250mm

LED light source wavelength: 405nm

Curing method: Turntable rotation curing 6 seconds/circle

Light source power: 100W

Control method: Timer switch knob

Packaging size: 545x450x450 (mm)

Scope of application: Light-curing resin printing model curing, UV glue curing
