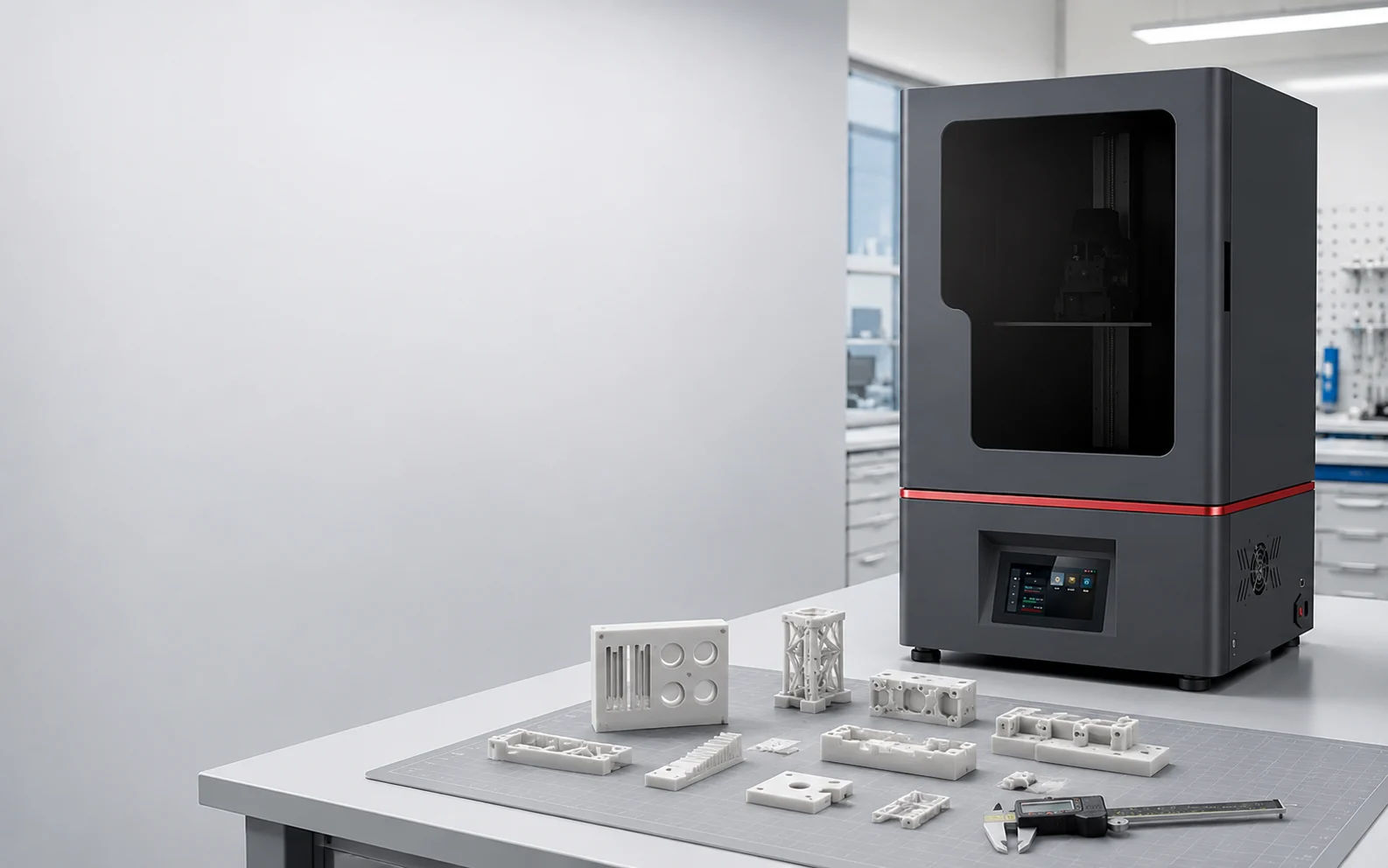

Industrial Resin 3D Printer Repeatability Test: A Practical Engineering Guide

In industrial resin 3D printing, producing one accurate sample is only the beginning. Engineering teams need to understand whether the same printer, resin, parameters and post-processing workflow can repeatedly deliver consistent parts over multiple build cycles. This guide explains how repeatability is evaluated, which process variables influence results, and how to validate a printer before it is introduced into prototype development or production workflows.

• Test artifact selection & rationale
• Measurement method and sample size
• Process variables that degrade repeatability
• Data interpretation: standard deviation, Cp/Cpk
• Pre-purchase validation checklist

Why Repeatability Matters More Than Single-Part Accuracy

For engineering teams evaluating resin 3D printing systems, repeatability should be considered as part of the complete manufacturing workflow rather than a single machine specification. Printer mechanics, resin behavior, printing parameters, cleaning consistency and UV post-curing all contribute to final dimensional stability.

A single well-printed part tells you almost nothing about a printer's suitability for production. One-off accuracy can be achieved by chance, by a fresh resin batch, by a recently calibrated build plate, or by ideal ambient conditions. Repeatability, by contrast, is a measure of process stability. When a printer delivers a mean bore diameter of 10.02 mm with a standard deviation of 0.01 mm across 12 builds, the engineering team can design around that predictable offset. When the same feature varies between 9.95 mm and 10.12 mm without explanation, no design tolerance can compensate reliably.

For production environments, repeatability is the more commercially meaningful metric. It determines whether a batch of 200 printed housings will fit the same seal geometry, whether dental models will seat on the same articulator pin, or whether flexible lattice midsoles will maintain consistent wall thickness and cushioning behavior. Accuracy can often be corrected through scaling or offset adjustment. Repeatability cannot be corrected after the fact—it must be engineered into the printer and the process.

Designing the Repeatability Test

1. Selecting the Test Artifact

The test artifact should not be an abstract calibration cube unless your parts are abstract cubes. Instead, choose or design a part that includes features representative of your typical production geometry. Useful features include:

• Bores and holes at multiple diameters—critical for fit and assembly evaluation.
• Wall thickness features at 1 mm, 2 mm, and 4 mm—useful for detecting resin shrinkage variation.
• Bosses and standoffs—common in functional parts and mounting interfaces.
• Flatness reference surfaces—for evaluating warpage after post-curing.
• A defined measurement datum—three mutually perpendicular flat faces that allow consistent fixturing during measurement.

Many engineering teams use a hybrid approach: a standardized benchmark artifact such as the NIST overhang or internal test coupon, combined with a simplified version of their own production part. The standardized artifact allows comparison across printers and over time; the simplified production part validates relevance to the specific application.

2. Fixing the Process Variables

A repeatability test is only meaningful when the process is fully documented and held constant. Record and control these variables for every build:

• Resin lot number and storage conditions—resin viscosity changes with temperature and age.
• Resin temperature at print start—cooler resin flows differently and may require adjusted exposure.
• Layer thickness—do not compare 50 µm and 100 µm data in the same analysis.
• Orientation and support strategy—these affect shrinkage direction and support removal artifacts.
• Build plate preparation—leveling, cleanliness, and adhesion treatment.
• Post-processing sequence—cleaning solvent, duration, drying method, UV post-curing energy, and time.

Every one of these variables can introduce variation larger than the printer's mechanical repeatability. If you change the washing solvent halfway through a test series, the dimensional data will reflect both the printer and the process change, making the results uninterpretable.

3. Sample Size and Build Scheduling

A practical minimum is five separate build cycles, each with the test artifact printed in the same position on the build plate. Ten builds provide a more robust estimate of standard deviation and allow you to detect drift over time. Spread the builds across multiple days to capture the effect of ambient temperature changes, resin settling, and operator variation.

Avoid printing five copies of the artifact on a single build and treating them as five independent samples. Parts printed on the same build share the same resin temperature, the same build plate preparation, the same exposure file, and the same post-processing batch. They are not independent observations for repeatability analysis.

4. Measurement Protocol

Measure each critical feature with a calibrated instrument appropriate to the tolerance you need to hold. For features with tolerances tighter than ±0.1 mm, a digital caliper is insufficient—use a micrometer, vision measurement system, or coordinate measuring machine (CMM). Document the measurement method, the operator, the instrument calibration date, and the number of repeated measurements per feature. Take at least three measurements per feature per part and use the average for analysis.

Running the Test: Step-by-Step

1. Prepare the build plate and level the printer according to the manufacturer's procedure.
2. Bring the resin to the specified operating temperature range and record the temperature before each build.
3. Print the test artifact using the locked file, orientation, and support settings.
4. Remove the part and wash it using the documented solvent and duration.
5. Allow the part to fully dry. Residual solvent or moisture affects dimensional measurement and UV post-curing response.
6. UV post-cure using the documented energy level, duration, and part orientation inside the curing chamber.
7. Allow the part to stabilize to room temperature before measurement.
8. Measure all critical features using the documented protocol and record values.
9. Repeat for a minimum of five separate build cycles.

Interpreting the Data

Once the measurement data is collected, calculate the following for each critical feature:

• Mean (μ)—the average value across all builds.
• Standard deviation (σ)—the spread of values around the mean.
• Range (R)—maximum minus minimum, useful for quick diagnosis.
• Cp and Cpk—process capability indices when a design tolerance exists. Cp measures whether the process spread fits within the tolerance band. Cpk also accounts for the process mean being off-center from the nominal.

A process with a standard deviation of 0.03 mm on a feature with a ±0.10 mm tolerance is considered repeatable for most production purposes. A standard deviation above 0.05 mm on the same tolerance band may require investigation before production release. However, acceptable repeatability is always defined by the application, not by a universal threshold.

Common Sources of Repeatability Failure

Resin Temperature Drift

Photopolymer resin viscosity is temperature-dependent. A resin at 18°C flows differently than the same resin at 28°C, affecting recoating behavior, layer thickness consistency, and polymerization kinetics. Printers without heated resin vats are more susceptible to ambient temperature swings. Even with heated vats, resin removed from cold storage and poured directly into the printer creates a thermal transient that can affect early layers. For repeatable results, resin should be acclimated to the operating temperature before printing and ideally held within a controlled range throughout the build.

Inconsistent Cleaning and Drying

Residual uncured resin on a part surface continues to react during UV post-curing, adding dimensional change that varies with the amount of residue. If one part is washed for two minutes and another for four minutes, or if one part is dried thoroughly while another retains solvent in recesses, the post-curing response will differ. A repeatability test that ignores this variable will attribute cleaning variation to the printer. The solution is a defined washing protocol—solvent type, agitation method, duration, and a mandatory full drying step before UV exposure.

UV Post-Curing Variability

UV post-curing drives final polymerization shrinkage and crosslink density. Parts cured for different durations, at different distances from the UV source, or at different orientations inside the chamber will exhibit different final dimensions. Post-curing equipment with reflective interiors and rotating platforms reduces the impact of part position. Regardless of the equipment, the curing protocol must be fixed: same energy, same duration, same part orientation, and same chamber loading pattern for every build in the test.

Build Plate Leveling and Adhesion

A build plate that is not level relative to the optical plane introduces a systematic thickness error in the first several layers, affecting overall Z-dimension repeatability. Build plates that lose level over repeated use produce drift in the data. Regular re-leveling, or the use of self-leveling mechanisms where available, is a prerequisite for a meaningful repeatability evaluation.

Relevant YIDIMU Systems for Repeatability Testing

Different application categories place different demands on repeatability. The following YIDIMU system families represent the categories most relevant to engineers running repeatability evaluations.

Eternal M1 / M2 — Industrial Prototyping & Engineering Parts

Designed for industrial prototyping, large-format parts, multi-part nesting, and small-batch evaluation. A repeatability test on this class of system typically focuses on bore accuracy, wall thickness stability, and flatness across a large build area.

Flex G2 / Flex Pro — Flexible & Elastomer Systems

Built for flexible materials, elastomers, footwear, lattices, and cushioning components. Repeatability in this category centers on wall thickness consistency, lattice strut dimensions, and shore hardness stability across builds.

Eternal Y8 / D1 — Dental Model & Lab Workflow

Targeted at dental models, orthodontic models, and dental laboratory processes. Repeatability validation typically involves seating accuracy on articulator pins, interproximal spacing fidelity, and die fit consistency.

Specific specifications, build volumes, and material compatibility must be confirmed against current YIDIMU official product documentation before selecting a system for your application.

Practical Evaluation Checklist

Limitations and Validation

A repeatability test using a generic artifact does not guarantee identical performance on a complex production part with different geometry, supports, or resin. Parameter sheets, published specifications, and single-part samples cannot replace testing with your part geometry and your materials. The data presented in this article reflects general industry practice for resin 3D printing repeatability evaluation. Actual results depend on the specific printer model, resin formulation, layer thickness, orientation, support density, ambient conditions, cleaning protocol, drying completeness, UV post-curing parameters, and measurement methodology. Before making a production commitment, run a representative sample batch of your actual parts through the full process chain and measure the features that matter to your design.
