3D Scanner

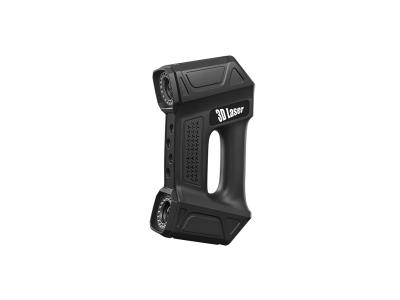

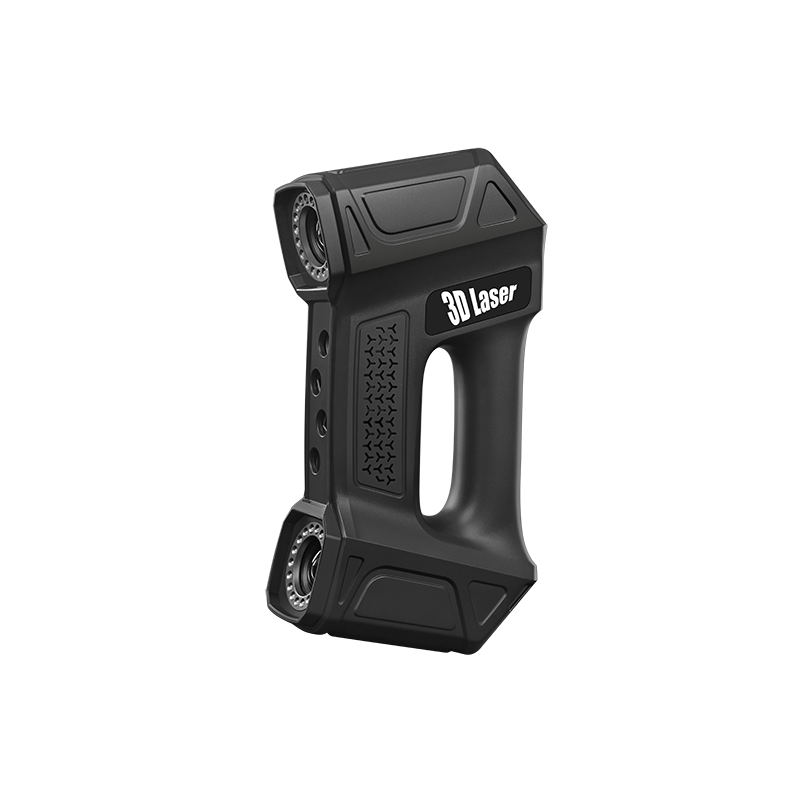

The RUI series 3D scanner originated from Zhejiang University CAD | Microsoft Asia Research, and has won the 2022 China Design Intelligence Award. As an excellent 3D scanner device, its unique compatibility and efficient drawing efficiency are deeply loved by the majority of 3D modeling enthusiasts. It is compatible with a variety of mainstream reverse software and 3D detection software on the market. At the same time, it has this exponential quality inspection and drawing efficiency. The operation process is simple. We provide full-process scanning guidance, and the software interface design is also clear and easy to understand to help you get started quickly. In just four steps, you can complete the full-size quality inspection process and quickly realize the process from scanning to processable drawings.
| Model | RUI-14 | RUI-22 | RUI30 PRO | RUI22 Max |
| Depth of Field | 620mm | |||
| Scan Mode | High-speed scanning large-format scanning deep-hole scanning | Large format scanning/high speed scanning/deep hole scanning/fine scanning | ||
| 光源 | 14 cross laser beams +1 laser beam | 22 cross laser beams +1 laser beam | 30 cross laser beams +7+1 laser beam | 22 cross laser beams +7+1 laser beam |
| Laser Type | class II(Eye-safe) | |||
| Scan speed | 1,650,000 measurements per second | 2.020,00 0measurements per second | 2.100.000 measurements per second | 2,020,000 measurements per second |
| Scan range | 100mm~4000mm | |||
| Laser Scanning (Safety Laser) | ||||
| Scanning accuracy | 0.02mm | |||
| Volume accuracy | 0.020mm±0.035mm/m | |||
| Transmission method | USB3.2 | |||
| Operating temperature | 0℃-40℃(Non-cold temperature) | |||
| Reference distance | 300 mm | |||
| Output Data | .ply..obj..vtk,.stl..off.ma,txt,.asc,.neu,.xyz,.scv,.pn.pv,pov..可定制(customizable) | |||
