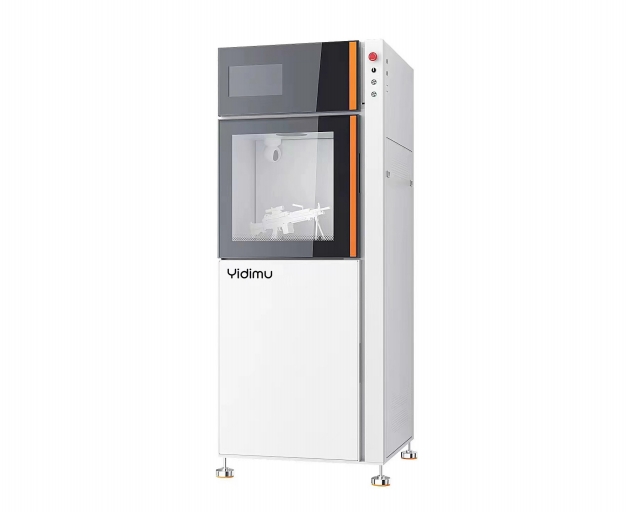

As an SLA (stereolithography) light-curing 3D printer that combines innovation and efficiency, SLA400 adopts the second-generation new appearance design, which not only highlights the modern industrial aesthetics, but also achieves a qualitative leap in performance. Designed for users who pursue high precision, high efficiency and a wide range of industry applications, SLA400 leads the new trend of 3D printing technology with its excellent printing speed and quality.
1. Second-generation new appearance design: SLA400 adopts the second-generation design concept, with a stylish appearance and compact structure, which not only ensures the stability of the equipment, but also improves the overall beauty and practicality.
2. Industrial-grade printing quality: By optimizing the printing process, SLA400 ensures the stability of the printing process, achieves industrial-grade printing speed and quality, and meets application scenarios with extremely high requirements for precision and efficiency.
3. Environmentally friendly and cost-saving: No additional humidity adjustment equipment such as dehumidifiers is required, which greatly saves production costs and operating space, while also reducing dependence on the environment and improving the adaptability and flexibility of the equipment.
4. Modular design, easy maintenance: The resin tank is easy to disassemble and users can easily replace it according to actual needs, reducing the difficulty and cost of maintenance. At the same time, the stainless steel detachable mesh forming platform design makes the printed workpiece easy to peel off and more convenient to clean and maintain.
5. Friendly human-computer interaction: Equipped with a 10-inch large screen, combined with keyboard operation, the operation interface is intuitive and easy to understand, which improves the user experience. The built-in camera realizes full monitoring, so that the printing process is under control and ensures that every print meets expectations.
Product model: SLA400
3D printing technology: Stereo lithography Appearance
Molding size: 400mmx400mmx350mm, meeting the printing needs of workpieces of various sizes.
Laser: Customized UV laser is used to ensure high-precision and high-efficiency curing effect.
Galvanometer: High-end digital galvanometer, providing fast and accurate scanning capabilities, with a scanning speed of 6000mm/s~10000mm/s.
Spot size: less than 0.2mm, usually controlled between 0.1mm-0.2mm, to ensure accurate presentation of printing details.
Layer thickness: 0.05mm-0.15mm adjustable, to meet printing tasks with different precision requirements.
Power supply: 220V, 50HZ, adapted to the power standards in most parts of the world.
Equipment weight: 320KG (excluding resin material), reflecting the stability and durability of the equipment.
SLA400 has demonstrated strong competitiveness in many fields with its excellent performance and wide application adaptability. Whether it is the production of dental bridges, crowns, and prostheses in the medical field, or the customization of jewelry and rings in the jewelry industry, or the production of movie figures, character models, and children's toys in the animation industry, SLA400 can provide high-quality printing solutions. In addition, it can also be used in the production of hardware fog parts, injection molds, non-standard tools, and artworks, bringing unprecedented creativity and production efficiency to all walks of life.
1. Adopt the second generation of SLA molding with a new appearance design.
2. The process is stable, and the printing process can achieve industrial-grade printing speed and quality.
3. No additional humidity control equipment such as dehumidifiers is required to save production costs.
4. Easy to disassemble, and the resin tank can be replaced as needed.
5. The stainless steel detachable mesh molding platform is adopted, and the printed workpiece is easy to peel off and easy to clean.
6. The 10-inch large screen is more convenient to operate with the keyboard.
Built-in camera for full monitoring.
Medical: dental bridges, crowns, prostheses
Jewelry: jewelry, rings
Animation: movie figures, character models, children's toys, etc.
Others: hardware fog parts, injection molds, non-standard tools, artworks, etc.
